Serial Gateway
Serial to 4G / WiFi / Ethernet / LoRa Gateway

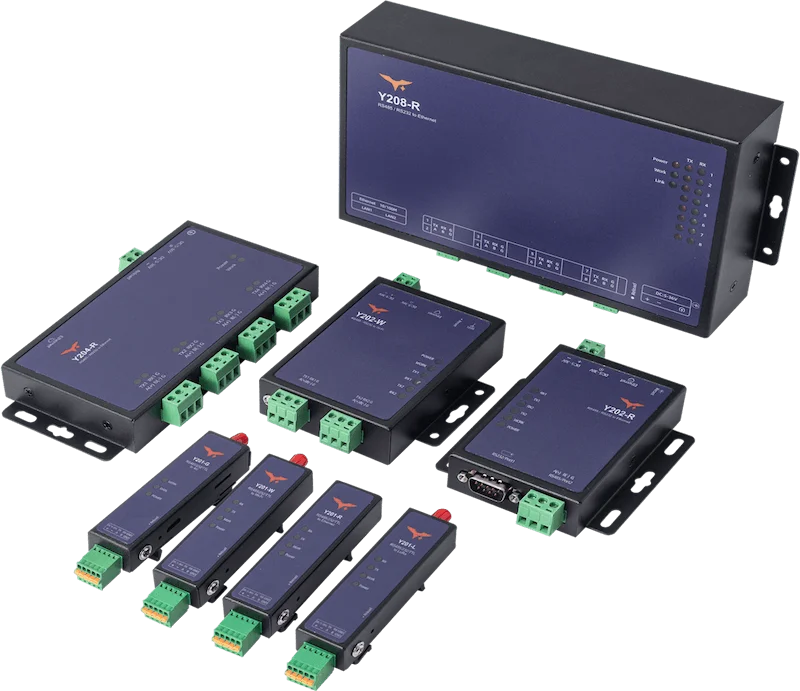

The Y201, Y202, Y204 and Y208 Serial Gateway families connect RS232, RS485 or TTL devices to 4G LTE, Wi-Fi, Ethernet or LoRa networks. Models provide 1, 2, 4 or 8 serial ports and support transparent TCP/UDP, Modbus RTU-to-TCP and MQTT/HTTP data transmission.
- Support RS232 / RS485 / TTL
- Supports Modbus TCP / RTU
- Support TCP / UDP / MQTT / HTTP
Model Comparison
| Model | Uplink | Serial Ports | Interfaces | Typical Use |
|---|---|---|---|---|

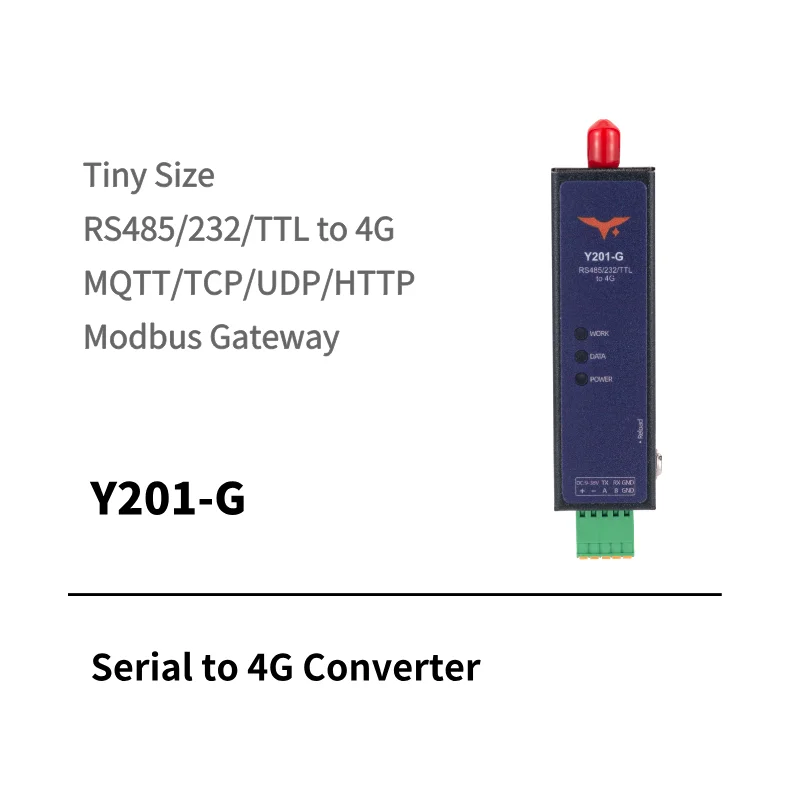

| Y201-G | 4G LTE Cat1 | 1 (Mini DTU) | RS485 / RS232 / TTL | Single device backhaul where only cellular is available |

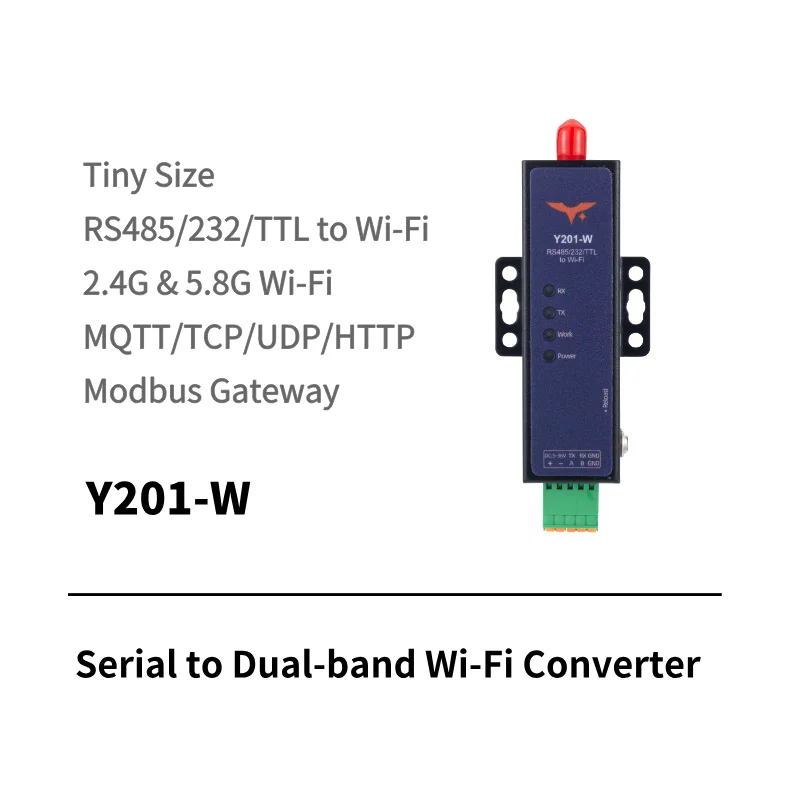

| Y201-W | WiFi | 1 (Mini DTU) | RS485 / RS232 / TTL | Indoor panels with stable WLAN and no Ethernet cable run |

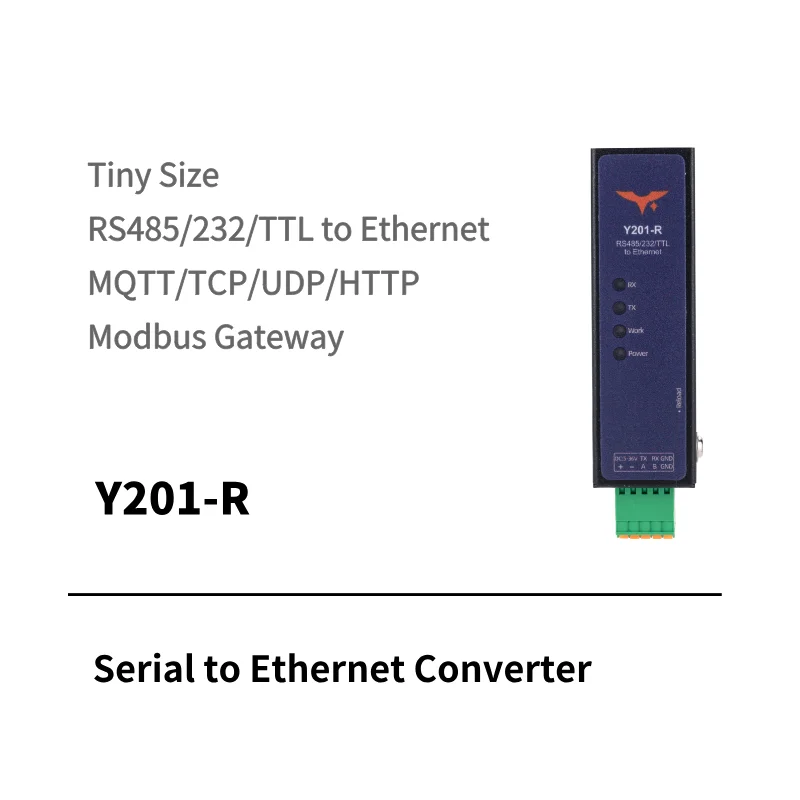

| Y201-R | Ethernet | 1 (Mini DTU) | RS485 / RS232 / TTL | Wired cabinets requiring stable connectivity and low latency |

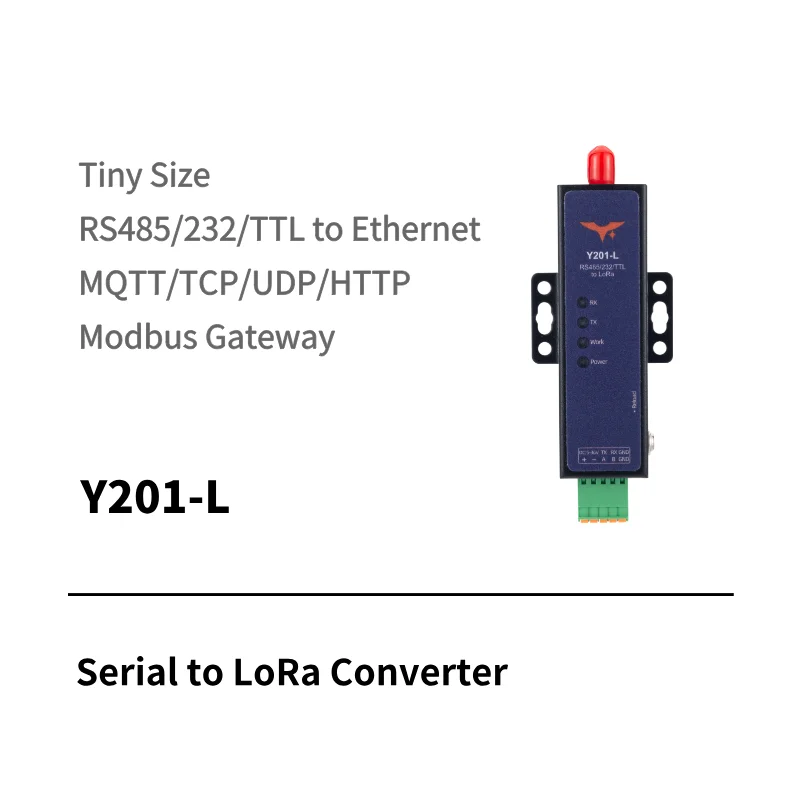

| Y201-L | LoRa | 1 (Mini DTU) | RS485 / RS232 / TTL | Remote assets 5–10 km away, paired with LoRa gateway |
| Y202-W | WiFi | 2 (Standard DTU) | RS232+RS485 / 2×RS232 / 2×RS485 | Two instruments aggregated over WLAN in one uplink |
| Y202-R | Ethernet | 2 (Standard DTU) | RS232+RS485 / 2×RS232 / 2×RS485 | Dual serial devices in wired control rooms |
| Y204-R | Ethernet | 4 (Standard DTU) | 4×RS232 / 4×RS485 / Mixed | SCADA panels aggregating multiple meters/sensors |
| Y208-R | Ethernet | 8 (Standard DTU) | 8×RS232 / 8×RS485 / Mixed | High-density serial consolidation with one IP uplink |
Model Lineup
One Serial Port
2~8 Serial Ports

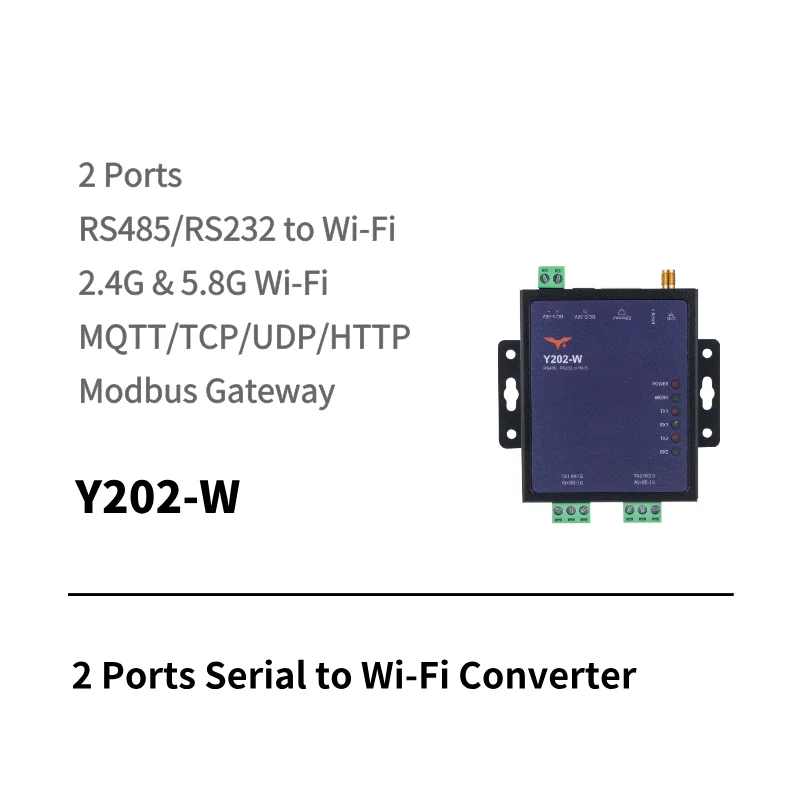

Y202-W
2-Port Serial to WiFi DTU
View details

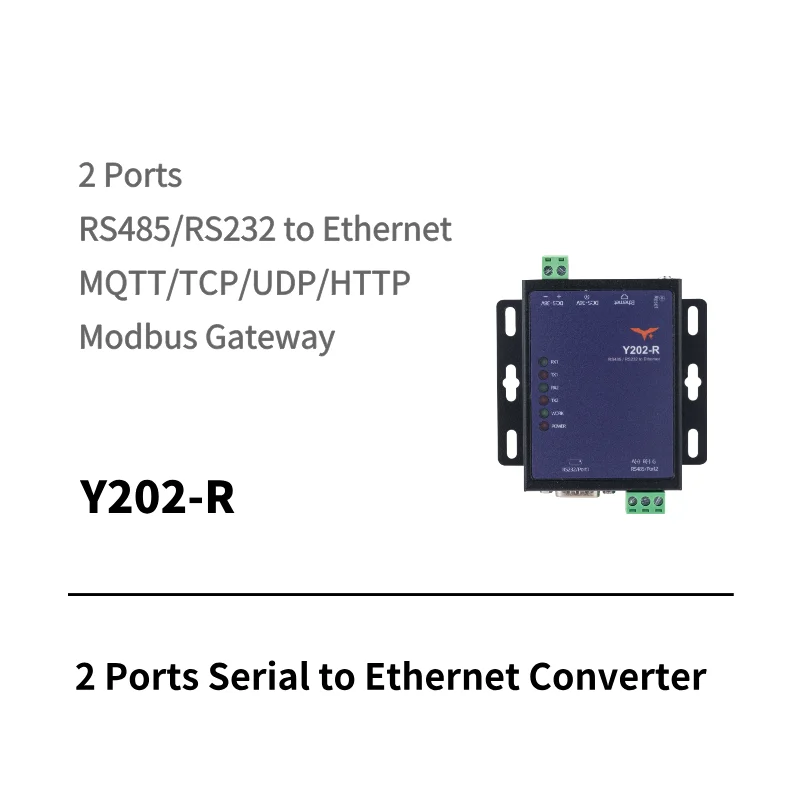

Y202-R
2-Port Serial to Ethernet DTU
View details

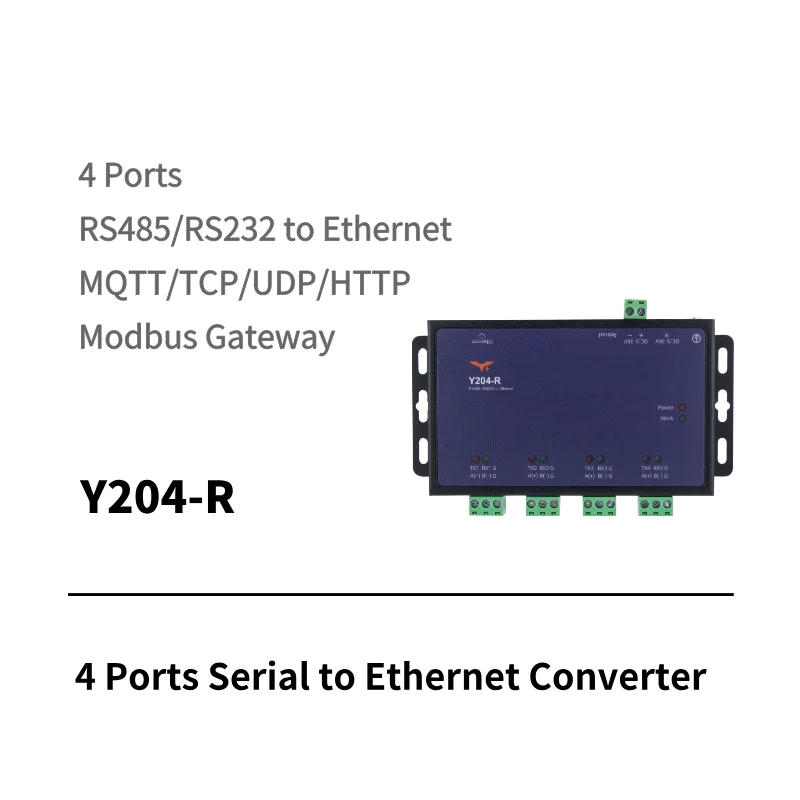

Y204-R
4-Port Serial to WiFi/Ethernet DTU
View details

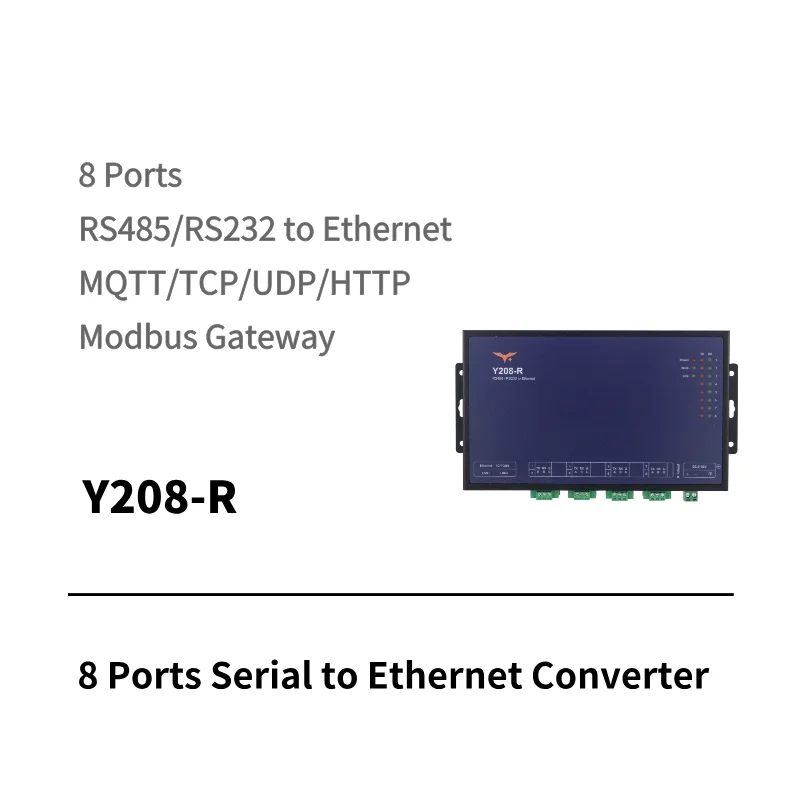

Y208-R
8-Port Serial to WiFi/Ethernet DTU
View details
Y211-L
Industrial LoRa Serial Gateway
View details
Y212-G
4G Serial Gateway
View details
Y212-GWR
Tri-Mode Industrial Router
View detailsNeed another I/O or network configuration?
Send the required interfaces, point count, protocol and site conditions.
