Tunnel and Utility Corridor Emergency Monitoring
Gas, Water-Level and Equipment Status Monitoring with Alert Linkage
For tunnels, utility corridors, municipal and industrial pipelines, connect gas, water-level, temperature/humidity, equipment-status and manual alarm signals, then configure alerts, local linkage and operating records by project.
Long-route wireless communicationLocal equipment linkageSCADA / PLC interface assessment
Common Tunnel Monitoring and Response Gaps
Long routes and distributed equipment require continuous sensing, coordinated response and complete event records.
Distributed equipment
Fans, pumps, lighting and signage may be installed across long routes, increasing the time required for manual operation.
Separate response actions
Fire, smoke, gas or flooding may require several equipment groups to operate under the same response rule.
Missing historical records
Without trend data, safety decisions rely on manual observations instead of measured change over time.
TunnelGuard Monitoring and Response Architecture
TunnelGuard combines environmental sensing, distributed LoRa interlocking, remote I/O equipment control, and cloud visibility into one emergency-response architecture.
TunnelGuard Deployment Process
Deployment covers the site survey, field installation, response-rule commissioning and continuous operation.
Survey the route
Map tunnel layout, monitoring points, gateway positions, and equipment control wiring.
Install field nodes
Deploy sensors, Y301 I/O modules at control points, and Y403 LoRa mesh nodes along the tunnel.
Commission the response
Validate mesh paths, interlocking rules, Modbus TCP equipment points, alert thresholds, and cloud dashboards.
Operate continuously
Begin continuous monitoring, automated linkage, mobile alerts, trend analysis, and compliance reporting.
Monitoring and Emergency Response Functions
Each capability links a system function to an operational result.
Continuous environmental sensing
CO, CH4, H2S, O2, temperature, humidity, and water level are collected continuously so your team sees tunnel conditions as they change.
Distributed emergency linkage
Y403-11-L auto relay logic lets one dry-contact trigger energize outputs across peer nodes for coordinated response.
Remote equipment control
I/O modules connect equipment control points and return status so operators can start fans, pumps, and lights without entering the hazard zone.
Visual confirmation
Critical zones can add camera-based smoke and fire recognition for visual confirmation before escalation.
Mobile response
Managers receive data, alarms, records, and trend curves from a phone when they are away from the control room.
Large-screen operations
Large-screen visualization lets operations staff scan alarm state, current readings, and trend history from one place.
Related Products
These products provide the I/O and LoRa linkage functions used in the architecture.
Y403-11-L

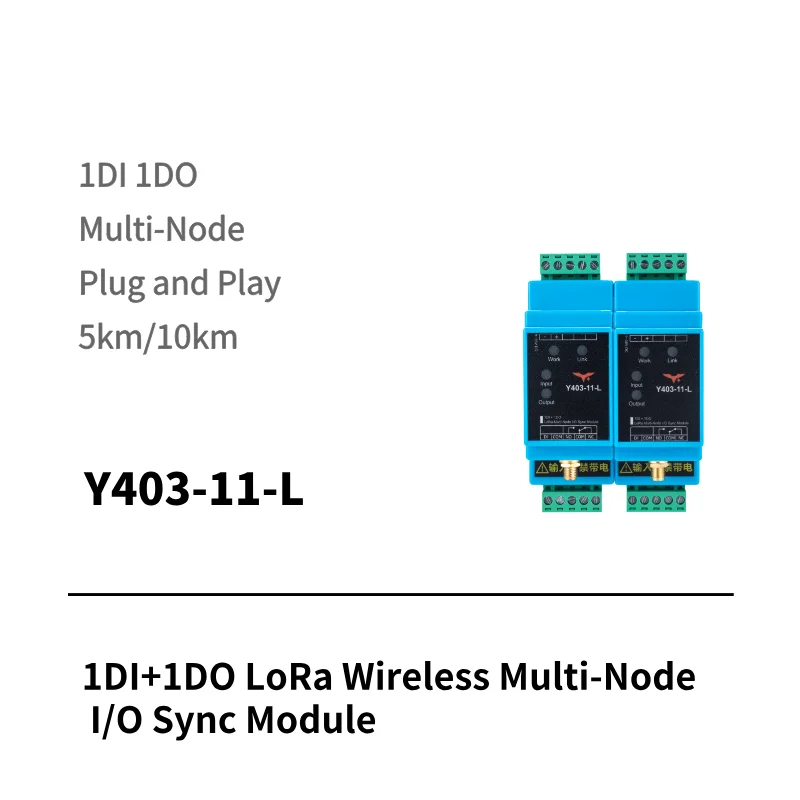

Y403-11-L Wireless I/O Sync Module
Y403-11-L builds a local automatic-relay network for emergency response.
Y301-110

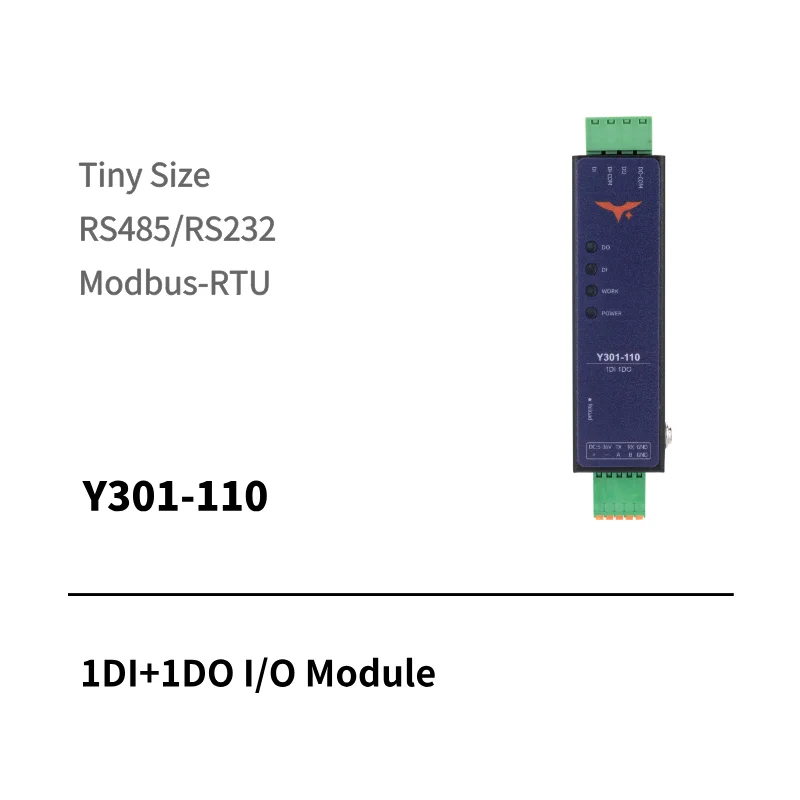

Y301-110 I/O Module
Y301-110 provides one digital input and one relay output for local equipment control.
Passive Monitoring and Automated Linkage
Automated linkage can connect a detected condition to predefined equipment actions while retaining an event record.
| Passive Monitoring | Automated Linkage with TunnelGuard |
|---|---|
| Sensor detects gas, alarm appears, operator notices, calls a crew, then someone enters the tunnel to start equipment. | Sensor contact closes, Y403-11-L DI triggers, interlocking propagates through the mesh, and DO outputs energize across the line. |
| Fans, pumps, lights, and signs behave like independent islands that require manual coordination. | Every node is part of one distributed interlocking network, so equipment groups can respond together. |
| Response time depends on staffing, phone calls, distance, and access conditions. | A configured local linkage can initiate equipment actions without waiting for manual coordination. |
| Network outages create alarm gaps and make later reporting harder. | Self-healing mesh and gateway buffering help preserve communication and historical records. |
| After the incident, teams reconstruct events from fragmented logs. | Detection, trigger, equipment response, operator action, and resolution are kept in one event timeline. |
Tunnel and Corridor Applications
Highway tunnels, utility corridors, metro passages and mine tunnels require monitoring points and response rules suited to their equipment and operating conditions.
Highway tunnels
CO or smoke condition triggers ventilation, lighting, signage, and portal response.
Utility corridors
CH4, H2S, water level, and heat alerts activate fans, pumps, and maintenance notifications.
Metro tunnels and passages
Temperature, humidity, and emergency lighting status feed the control room for rapid response.
Mine tunnels
Water-level escalation can start primary and backup pumps before flooding spreads.
Utility Corridor Flood Monitoring and Response Deployment
A deployment profile showing how full-line monitoring, remote control, and emergency linkage work together in practice.
Southern China tunnel cluster and urban utility corridor
A multi-tunnel highway cluster and urban utility corridor project required continuous environmental monitoring, remote equipment control and coordinated emergency linkage across long underground routes.
Deployment
YenGear deployed environmental monitoring nodes, Y301 I/O modules at fan rooms, pump stations and lighting panels, Y403-11-L LoRa mesh controllers along the route, uplink gateways and YenGear IoT Cloud.
Operating view
The monitoring center received line-wide status, alerts and event records, while local linkage rules connected water-level conditions to configured pump actions.
Reliability for Underground Deployment
The deployment design covers hardware ratings, field networking, uplink paths and event records for underground conditions.
Industrial hardware
Wide DC input, industrial mounting, and product-rated temperature and humidity ranges support harsh tunnel environments.
Self-healing mesh
Y403-11-L LoRa mesh nodes can relay and reroute signals across long corridors without relying on one central controller.
Multiple uplink paths
Ethernet, LoRa mesh, gateway uplink, and optional 4G backup reduce dependence on any single communication path.
Event traceability
Detection, linkage trigger, equipment response, operator action, and resolution data are retained for review and reporting.
Frequently Asked Questions
Answers about connectivity, integration, mesh behavior, configuration and pricing.
What if there is no 4G signal inside the tunnel?
In-tunnel communication can use LoRa mesh between Y403-11-L nodes, while gateways near suitable access points may uplink through Ethernet or a cellular backup. The positions, path redundancy and recovery behavior require a site plan and test.
Can TunnelGuard integrate with existing PLC or SCADA?
Integration can be evaluated through Modbus TCP/RTU, OPC-UA, an API or a project-specific gateway. Confirm the point list, write permissions, network boundary, response requirements and responsibility for each control action.
How is Y403 LoRa mesh different from Wi-Fi?
LoRa is intended for long-range, lower-bandwidth field signaling, while Wi-Fi depends more heavily on local access-point coverage and network design. Mesh relaying or alternate paths may be used, but topology and recovery must be verified for the tunnel.
Can emergency linkage rules be configured by scenario?
Yes. Gas, water level, manual trigger, or compound conditions can map to different equipment response groups during commissioning.
What happens during a network interruption?
A compatible gateway may buffer readings and backfill history after connectivity recovers. Whether local interlocking continues depends on the controller and project configuration, so the interrupted, restored and manual-override states must be tested.
What does pricing depend on?
Tunnel length, monitoring point count, sensor types, controller count, gateway configuration, integration scope, and cloud or on-premise deployment model.
Tunnel safety assessment
Do Not Let the Next Incident Happen in the Dark.
Tell us the tunnel length, monitoring points, equipment groups and existing SCADA or PLC.

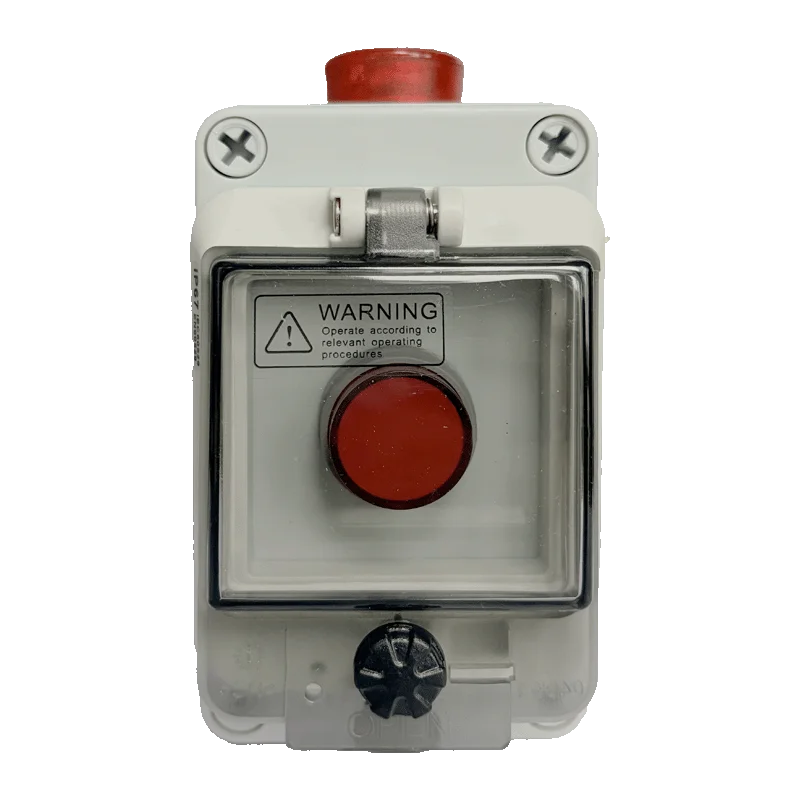

Y901 Multi-Point Wireless Alarm for Distributed Warning Points
