Serial data remains isolated
Equipment data exposed only through serial interfaces is not directly available to IP-based monitoring and reporting systems.
AI Data Center Cooling
Cooling Equipment Status Monitoring and Interlock Control
Monitor the status of cooling units, pumps, fans, valves and power-distribution equipment, and integrate with existing BMS, PLC or monitoring platforms. Critical protections affecting equipment safety and business continuity should be executed by an approved and tested local system.
Cooling equipment statusBMS / PLC integrationLocal protection and remote monitoring
Cooling Data Is Often Isolated on Serial Interfaces
Monitoring systems require network data
CDUs, chillers and pumps may output data through RS232 or RS485 while supervisory systems require an IP connection.
Manual checks provide limited coverage
Periodic equipment rounds do not provide a continuous record of operating conditions.
Existing equipment remains in service
A gateway can add network connectivity to compatible cooling equipment without replacing the equipment itself.
Historical analysis requires consistent data
Continuous data collection supports trend review, reporting and operating analysis.
Hardware and Cloud Tools for Cooling Monitoring
DTUs and I/O modules connect existing field equipment, while YenGear IoT Cloud supports monitoring, alerts, remote control workflows, and data export.
Connect Serial Cooling Equipment to IP Networks
Connect serial devices and I/O points, configure protocol mapping, stream data, then monitor and control from the cloud.
Connect
DTUs connect to RS232/RS485 cooling equipment; I/O modules connect sensors, relays, valves, pumps, and alarms.
Configure
Map serial data, I/O points, and cloud connection settings through web configuration workflows.
Stream
Cooling data flows to cloud and SCADA systems while control commands reach I/O outputs.
Operate
Use dashboards, alerts, histories, reports, and data exports to improve cooling operations.
Cooling Connectivity and Monitoring Functions
Connect serial data and I/O points while retaining existing SCADA access where required.
Serial-to-network conversion
Y204-R/Y208-R DTUs convert RS232/RS485 to Modbus TCP, MQTT, and HTTP.
I/O monitoring and control
Y301/Y311 I/O modules connect sensors and actuators (DI/DO/AI/AO). Digital outputs drive relays, valves, and alarms.
Ethernet data transmission
DTUs connect to existing Ethernet infrastructure. Y208-R adds dual uplinks (LAN1/LAN2) for automatic failover.
Dual-Socket Architecture
Each DTU port runs Socket A and B concurrently. SCADA and YenGear IoT Cloud receive data simultaneously.
Remote commands and operating rules
IoT Cloud supports manual commands and threshold-based automation for configured equipment points.
Monitoring and data export
Dashboards provide alerts and historical trends, with API-based data export for compatible integrations.

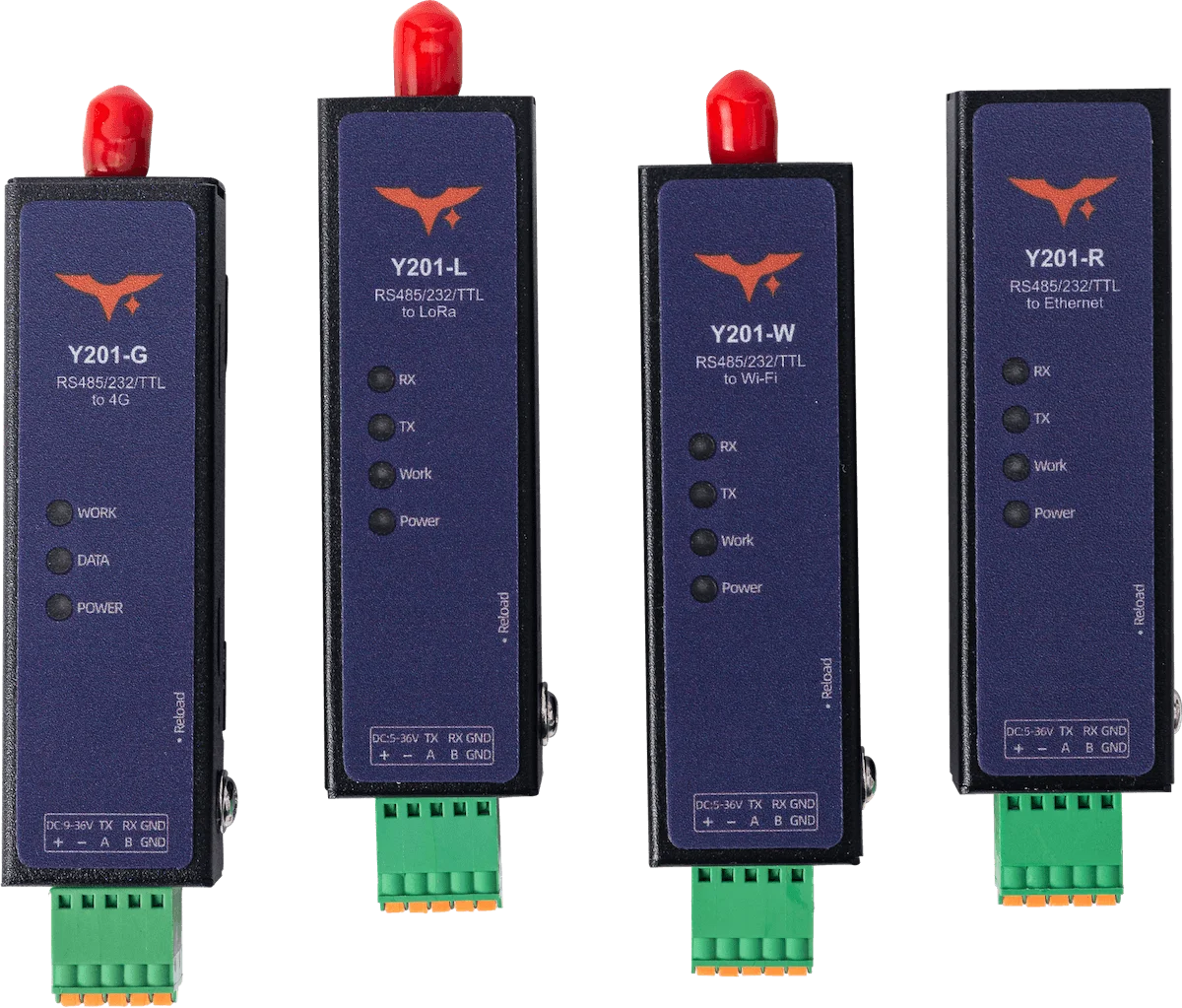

MiniLink DTU for Cooling Data Connectivity
- Use managed switches, VLANs, and network operations practices.
- Bridge RS232/RS485 CDUs, chillers, pumps, and controllers into IP systems.
- Preserve SCADA/control access while adding cloud visibility through parallel data paths.
YenGear Hardware for This Architecture
Selected hardware for connecting cooling equipment, I/O points, and cloud workflows.

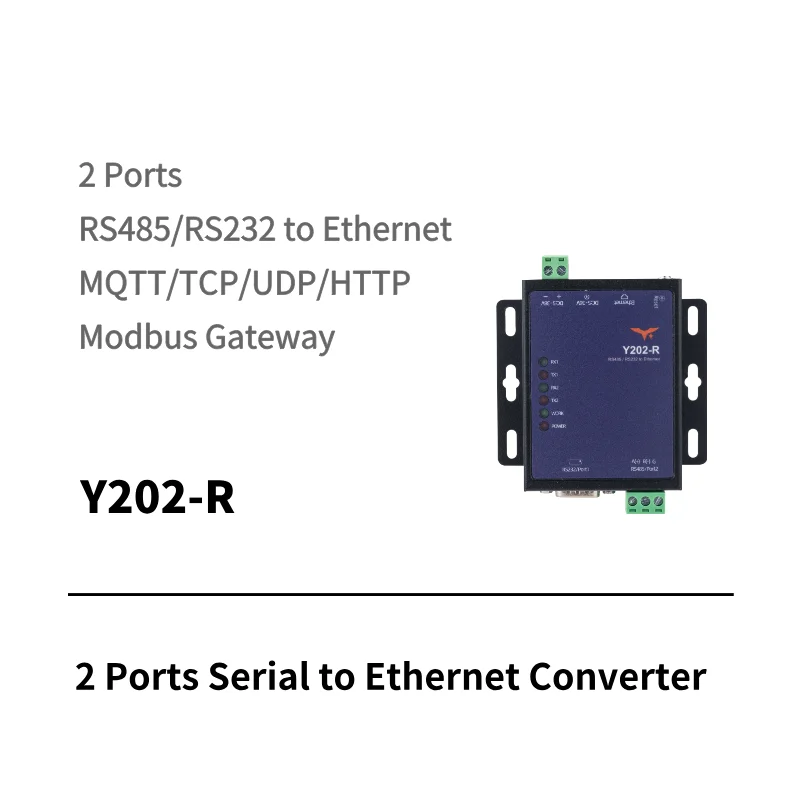

Y202-R
2-Port Serial to Ethernet Converter
RJ45 Ethernet, 2 x RS232 / 2 x RS485

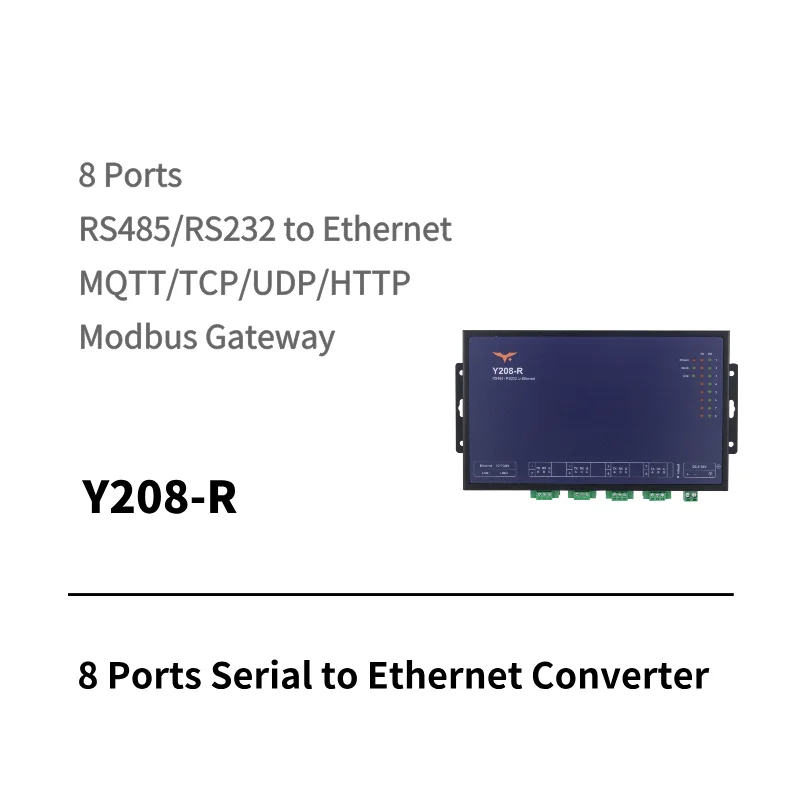

Y208-R
8-Port Serial to Ethernet Converter
RJ45 Ethernet, 8 x RS232 / 8 x RS485
Where YenGear Hardware and Cloud Are Deployed
Representative cooling-data scenarios for integrators and operators.
CDU and equipment control
Acquire CDU data and connect valves, pumps, and alarms for control workflows.
Legacy cooling equipment
Add cloud monitoring to RS485/Modbus equipment without replacing working units.
Multi-vendor consolidation
Consolidate serial devices from multiple manufacturers into standard network data paths.
Campus-wide visibility
Use existing campus networks to standardize visibility across buildings.
Connecting Cooling Equipment Without Replacing Working Assets
A representative architecture for connecting serial cooling equipment, I/O points and control workflows.
Ethernet DTUs connect compatible RS232 and RS485 equipment to the site network. I/O modules add defined sensor and relay points, while the cloud platform provides monitoring, alerts, records and configured control workflows.
Technical Specifications
This table summarizes the main interfaces and capabilities. Refer to the product documents for exact model variants.
| Parameter | Specification |
|---|---|
| Serial Connectivity | RS232 / RS485, software selectable per port; Y204-R (4-port), Y208-R (8-port); 9–36 VDC wide-range power input |
| Network & Protocols | 10/100Base-T RJ45 Ethernet; TCP, UDP, HTTP, MQTT; Modbus RTU to Modbus TCP conversion; Y208-R adds dual LAN1/LAN2 uplinks for redundancy |
| Dual Socket Architecture | Socket A and B per serial port run concurrently — existing SCADA keeps Socket A; YenGear IoT Cloud uses Socket B for monitoring and control |
| I/O Modules (Y301 Series) | 4 DI + 4 DO (Y301-440) or 4 DI + 4 DO + 4 AI 0–10 V / 4–20 mA (Y301-444); SPDT relay rated 277 VAC / 10 A; −40°C to +85°C operating range |
| Reliability & Maintenance | Hardware + software watchdogs, EMC-hardened design, 35 mm DIN-rail mounting; web UI, remote AT commands, HTTP OTA firmware updates |
Network Integration and Operating Records
The final network, access-control, logging and redundancy requirements are reviewed with the data-center team.
Managed Ethernet integration
DTUs can connect through the site Ethernet network. VLAN, addressing and access policies remain under the site network design.
Dual Ethernet interfaces
Y208-R provides LAN1 and LAN2 interfaces. The required operating mode and failover behavior must be confirmed during configuration.
Platform access control
Project permissions, user roles and integration credentials can be configured according to the deployment scope.
Data and operation records
The platform stores configured equipment data, alerts and operation records for review and export.
Published hardware ratings
Select I/O modules by their documented input voltage, temperature, humidity, relay rating and mounting requirements.
Parallel data connections
Dual-socket configurations can maintain an existing SCADA connection while sending a separate data stream to another system.
Frequently Asked Questions
Common integration questions for data center operators and system integrators.
Should we use Ethernet or wireless for cooling equipment?
Ethernet is often evaluated when a managed network and suitable cabling are already available. Wireless may be useful where cabling is difficult. The choice depends on the equipment interface, network policy, response requirements and site survey.
Can existing cooling equipment be connected?
Existing equipment may be connected through compatible RS232, RS485 or discrete I/O interfaces without replacing the equipment. Confirm the protocol, register map, electrical isolation, access window and change-control requirements before installation.
What information is needed for SCADA integration?
Provide the equipment interface, protocol, point list, addressing, read/write permissions, update frequency, alarm ownership and network rules. The final data path and any parallel access depend on the equipment and integration review.
What equipment and signals can be connected?
Compatible cooling equipment, sensors, relays, alarms, valves and pump signals can be evaluated through serial interfaces or Y301/Y311 I/O modules. Voltage, signal type, protocol and control responsibility must be confirmed for each point.
Is YenGear a full BMS or DCIM platform?
No. YenGear provides the DTU, I/O, and cloud monitoring/control layer that can integrate into broader ecosystems.
Cooling integration review
Connect Cooling Equipment to Monitoring
Tell us the equipment interfaces, network and monitoring points.
